Nominal heat
4,5-11,7 KW
Efficiency
81%
Wood consumption
2,7 kg / hour

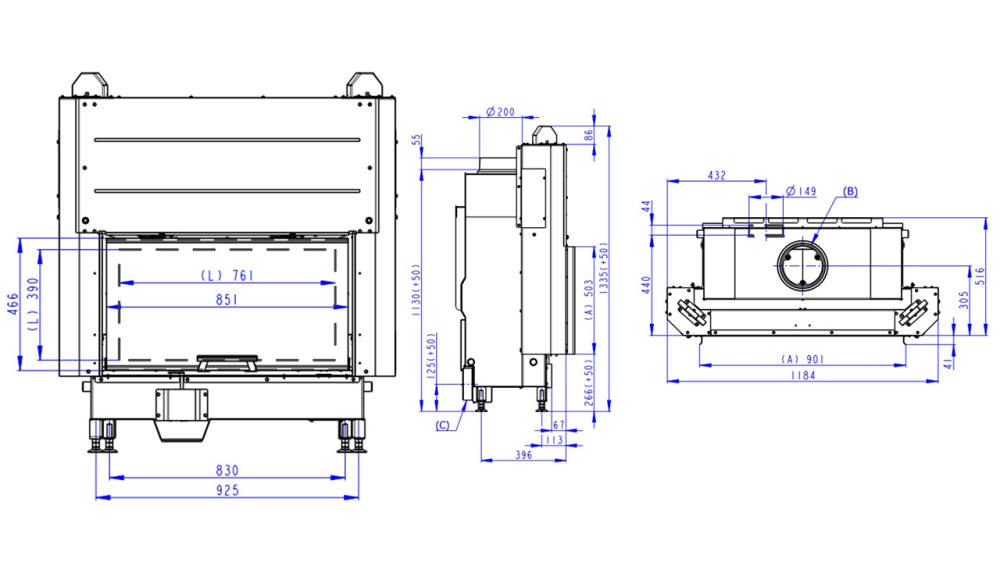

Dimensions (mm)
W1,184 x D557 x H1,335
Door
Sliding
Glass dimensions
W851xH466
Flue Outlet Diameter
Ø200
Inside Combustions Chamber

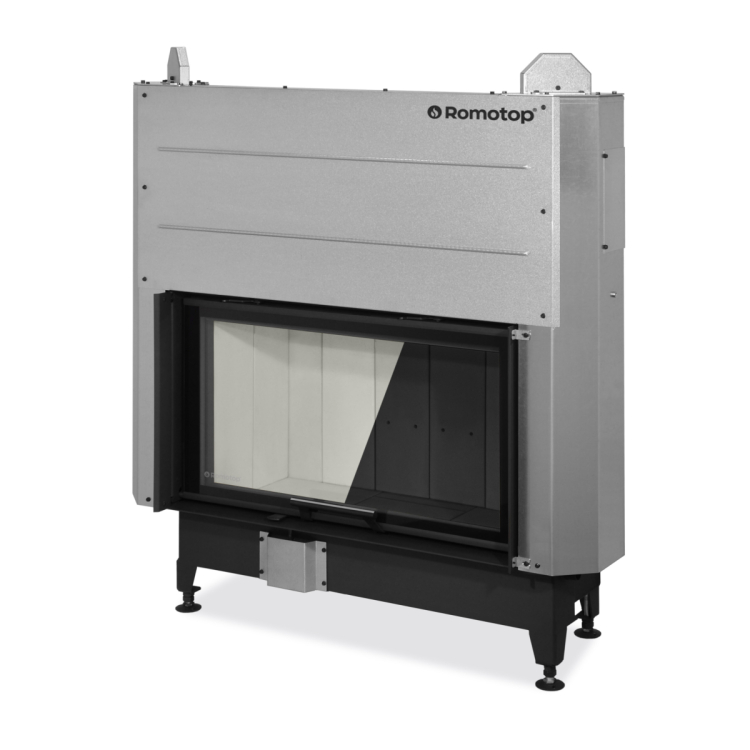

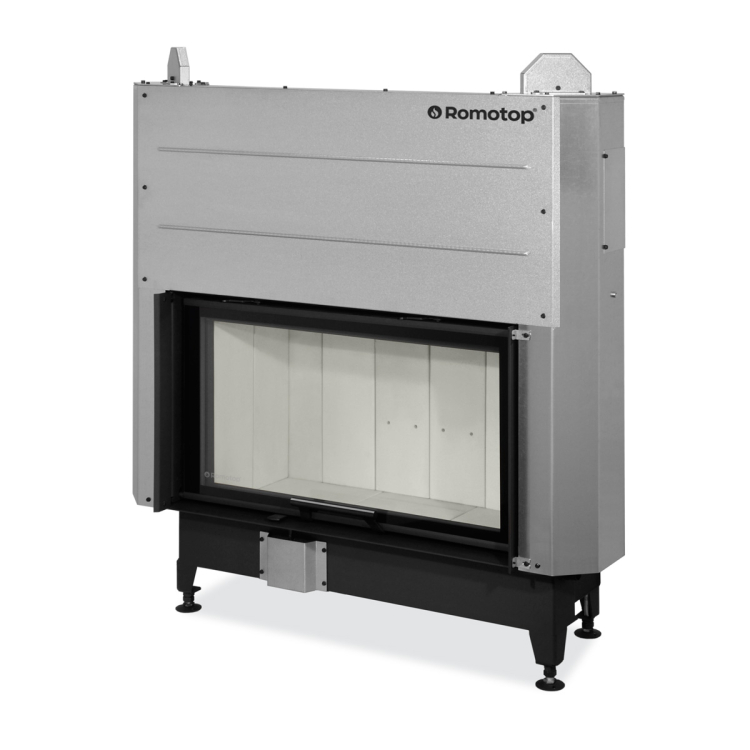

Choice of black or white heat-resistant bricks
Weight
272.00 kg
Warranty
5 years

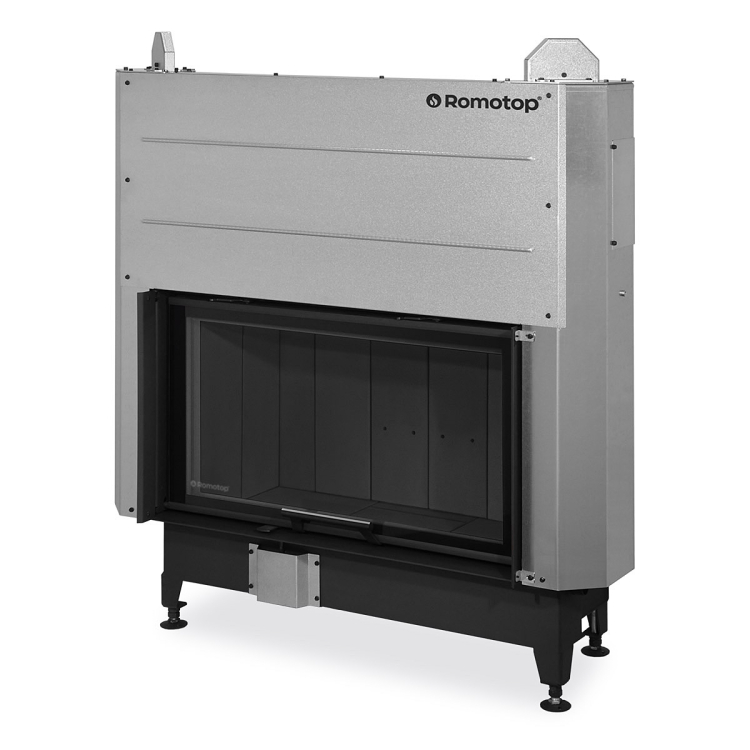

HEAT fireplace inserts with lifting door are characterised by a simple, yet timeless design that will entice even the most discerning customers. The clean and minimalistic lines respond to the requirements of today’s residential architecture.
HEAT fireplace inserts have large-format printed glazing that allows you to experience the fire in a unique way. The easy, silent and precise operation of the lifting door is guaranteed by the state-of-the-art SILENT LIFT system. The combustion chamber is lined with a special durable material called IGNITON, available in white or black, according to the customer's preference. The innovative DOUBLE SPIN flue gas system increases efficiency and reduces the environmental impact of the fireplace insert. Secondary air intake washes over the glass in the door to prevent the cumulation of deposits. Primary and secondary air intake is regulated by a single control element. An EAI (external air intake) system is included. Tertiary air is brought into the combustion chamber to maximize combustion efficiency.
